Applications
- Suitable for installation of support profiles with steel rods in rainscreen
- Embedment of suspended ceilings
- Fastening of ring bolts
Notice
For planning and processing, please observe approval ETA-12/0502.
-
Properties

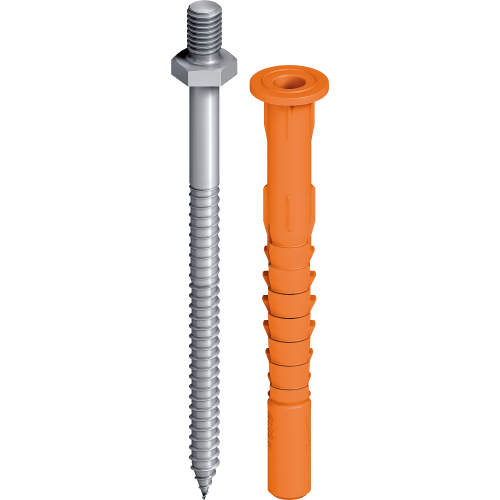

- With M8 threaded connection
- Facade anchor with two-stage screw
- Reliable form-fit in the substrate thanks to combined expansion zones
- High load capacity
- Product identification through different sleeve colours
-
Technical specifications
Characteristic values
- Diameter: 10 mm
- Drive: SW13
- Length M8 threaded connection: 13 mm
- Drill hole depth ≥ t: +90 mm
- Embedment depth ≥ hv: 70 mm
Characteristic loads
- Compressive strength aerated concrete [N/mm2]
- Aerated concrete 2: 0.75 kN
- Aerated concrete 3: 1.31 kN
- Aerated concrete 4: 1.87 kN
- Aerated concrete 6: 3.00 kN
- Partial safety factor γMAAC: 2.00
- Characteristic Bending moment
- Stainless steel screw: 20.6 Nm / γMS 1.87
