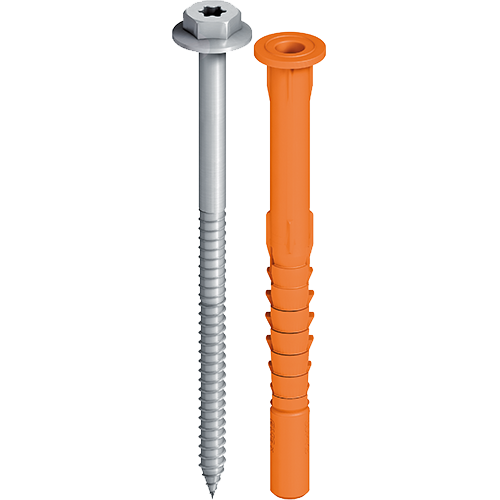

EJOT® facade anchor SDP-KB-10G

Applications

• For embedment of metal components in aerated concrete

Properties

• Hexagon head with flange
• Facade anchor with two-stage screw
• Reliable form-fit in the substrate thanks to combined expansion zones
• High load capacity
• Available with steel screws or stainless steel screws
• Product identification through different sleeve colours

Base materials
Approved for

• Aerated concrete

Note
For planning and processing, please observe approval ETA-12/0502. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure.

Technical specifications

Characteristic values

• Diameter: 10 mm
• Drive: A/F13/T40
• Drill hole depth ≥ t: 80 mm
• Embedment depth ≥h_v: 70 mm

Admissible load

• Compressive strength aerated concrete [N/mm²]
  • Aerated concrete f_b ≥ 2 N/mm²: 0.27 kN
  • Aerated concrete f_b ≥ 2 N/mm²: 0.27 kN
  • Aerated concrete f_b ≥ 2 N/mm²: 0.27 kN
  • Aerated concrete f_b ≥ 2 N/mm²: 0.27 kN
• Characteristic Bending moment
  • Steel screw (γMs = 1.5): 11.80 Nm
  • Stainless steel screw (γMs = 1.87): 11.02 Nm
