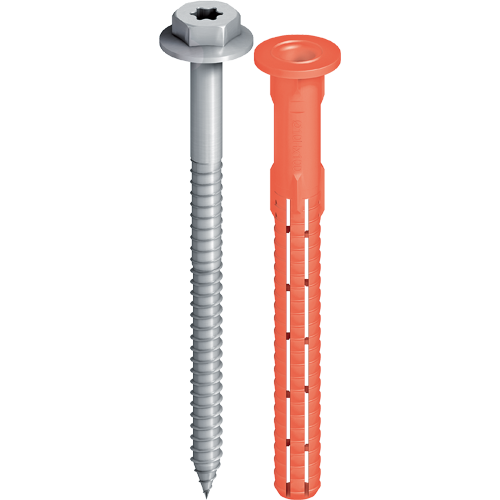

EJOT® Universal anchor SDF-KB-10H

Applications

• Installation of metal attachments
• For multiple fastening of non-load-bearing systems according to EAD 330284-00-0604
• Suitable for the structural fastening of wall cupboards, cladding, metal angle pieces
• For embedment in rain screens
• For application as single fastening in concrete

Properties

• Hexagon head with flange
• Approved for all common building materials
• Reliable hold in problematic building material thanks to optimised expansion part
• Radial expansion for reliable hold
• Product identification through different sleeve colours
• Double safety lock against torsion for secure installation

Base materials
Approved for

• Cracked concrete
• Non-cracked concrete
• Solid masonry
• Hollow and perforated bricks
• Aerated concrete

Note
For planning and processing, please observe ETA-10/0305 and Z-21.2-2122. Further information about parameters and loads can be found in the approvals. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure.

Technical specifications

Characteristic values

• Diameter: 10 mm
• Hole depth in concrete h_1.1: ≥ 80 mm
• Effective embedment depth h_nom: ≥ 70 mm
• Drill hole diameter d₀: 10 mm
• Through hole diameter of component to be attached d_f: ≤ 10.5 mm
• Drive: AF13/T40

Admissible loads

• Tensile load N_Rk,p in concrete C12/15
  • Temperature range 30 °C / 50 °C: 1.79 kN
  • Temperature range 50 °C / 80 °C: 1.59 kN
• Brick Mz 20-1.8, NF: 1.14 kN
• Solid sand-lime brick KS 36, NF: 1.29 kN
• Solid sand-lime brick KS 20, 8 DF: 1.29 kN
• Solid lightweight concrete brick V6, 2 DF: 0.57 kN
• Vertically perforated brick HLz 12-0.9, NF: 0.57 kN
• Perforated sand-lime brick KSL 12, 4 DF: 0.71 kN
• Cavity block made of lightweight concrete Hbl 10, 12 DF: 0.34 kN
• Transverse load V_Rk,s
  • Steel screw (γMs = 1.25): 7.48 kN
  • Stainless steel screw (γMs = 1.56) 6.99 kN
• Bending moment M_Rk,s
  • Steel screw (γMs = 1.25): 14.14 kN
  • Stainless steel screw (γMs = 1.56): 13.22 kN
• Compressive strength aerated concrete [N/mm²]: 30 – 50 °C
     Aerated concrete f_b ≥ 4 N/mm²: 0.54 kN
     Aerated concrete f_b ≥ 5 N/mm²: 0.71 kN
     Aerated concrete f_b ≥ 6 N/mm²: 0.89 kN
     Aerated concrete f_b ≥ 7 N/mm²: 0.89 kN
