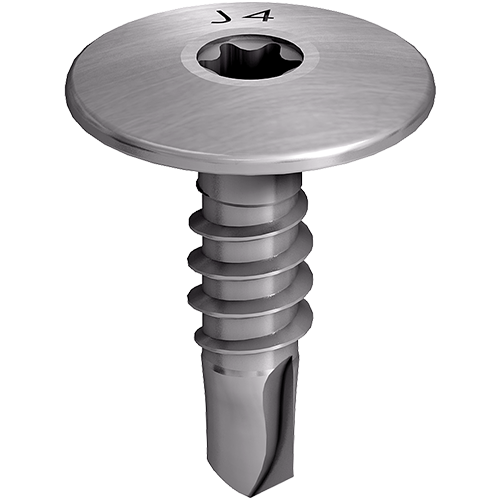

JT4-LT-XT-3H/4-5.5×19

Applications

• For fastening facade cladding 2.0 mm to aluminum substructures ≤ 2.0 mm
• Can be combined with LT fixed and sliding point grommets

Properties

• A2 stainless steel
• Pan head

Advantages

• Also available as painted version
• Flat screw head for aesthetic facade design
• Wobble-free fastening by using the LT Tool
• Easy assembly and reliable sliding thanks to optimised free spin zone
• Centering grommet collar protects the facade cladding surface from scratches
• No rivet installation gauge or drilling gauge necessary
• XT cutting ring under the screw head facilitates easy removal of the protective film during the forming of fixed points without centring grommet. Advantage when using the fixed point grommet: all holes in the panel can be pre-drilled with Ø 11 mm
• Non-threaded part under the screw head allows an intentional further rotation of the screw head after connecting surface

Technical specifications

• Diameter: 5.5 mm
• Drilling capacity (t_I vorgelocht) t_II: 1.5 – 3.0 mm
• Drive: Hexalobular drive T25
