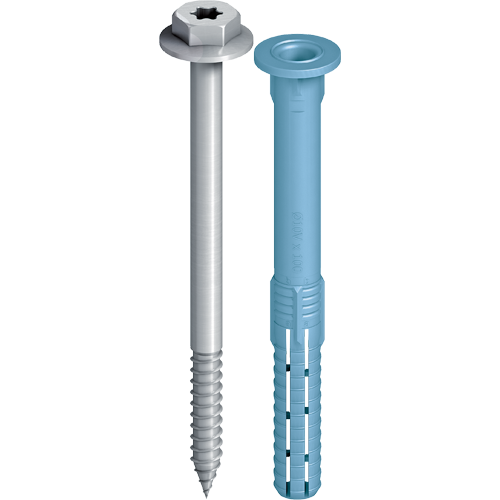

EJOT® facade anchor SDF-KB-10V

Applications

• Installation of metal attachments
• For multiple fastening of non-load-bearing systems according to EAD 330284-00-0604
• Suitable for the structural fastening of wall cupboards, cladding, metal angle pieces
• For application as single fastening in concrete

Properties

• Hexagon head with flange
• When used according to ETAG 020, embedment depth in concrete can be reduced to 40 mm (h_nom,1)
• Very short expansion part for extremely fast installation
• Optimal expanding part due to radial expansion
• Very high bending moment
• Product identification through different sleeve colours
• Double safety lock against torsion for secure installation

Base materials
Approved for

• Cracked concrete
• Non-cracked concrete
• Solid masonry
• Hollow and perforated bricks

Note
For planning and processing, please observe ETA-10/0305 and Z-21.2-2122. Further information about parameters and loads can be found in the approvals. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure.

Technical specifications

Characteristic values

• Diameter: 10 mm
• Hole depth in concrete h_1.1: ≥ 50 mm
• Effective embedment depth in concrete h_nom,1: ≥ 40 mm
• Hole depth in masonry h_1.2: ≥ 60 mm
• Effective embedment depth in masonry h_nom,2: ≥ 50 mm
• Drill hole diameter d₀: 10 mm
• Through hole diameter of component to be attached d_f: ≤ 10.5 mm
• Drive: A/F13/T40

Admissible loads

• Tensile load N_Rk,p in concrete C12/15
  • Temperature range 30 °C / 50 °C: 1.79 kN
  • Temperature range 50 °C / 80 °C: 1.59 kN
• F_Rk brick Mz 20-1.8, NF: 0.71 kN
• F_Rk solid sand-lime brick KS 36, NF: 1.14 kN
• F_Rk solid sand-lime brick KS 20, 8 DF: 1.29 kN
• Transverse load V_Rk,s in concrete C12/15 at h_nom,1 = 40 mm
  • Steel screw (γMs = 1.25): 6.34 kN
  • Stainless steel screw (γMs = 1.56): 5.85 kN
• Transverse load V_Rk,s at h_nom,2 = 50 mm
  • Steel screw (γMs = 1.25): 8.87 kN
  • Stainless steel screw (γMs = 1.56: 8.29 kN
• Bending moment M_Rk,s at h_nom,1 = 40 mm
  • Steel screw (γMs = 1.25): 11.04 Nm
  • Stainless steel screw (γMs = 1.56: 10.31 Nm
• Bending moment M_Rk,s at h_nom,2 = 50 mm
  • Steel screw (γMs = 1.25): 18.41 Nm
  • Stainless steel screw (γMs = 1.56: 17.06 Nm
