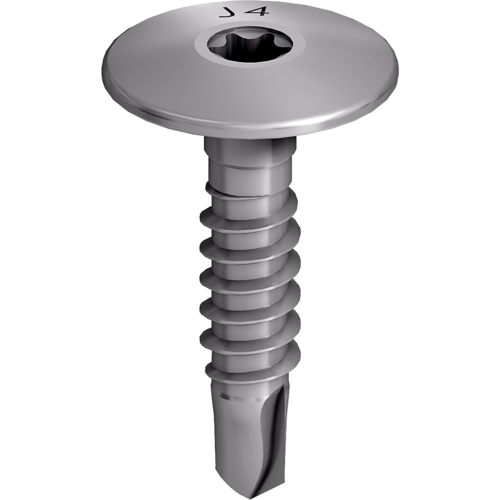

JT4-LT-XT-3H/6-5.5×25 KD16

Applications

• For fastening plain aluminium composite panels to aluminium
• substructures

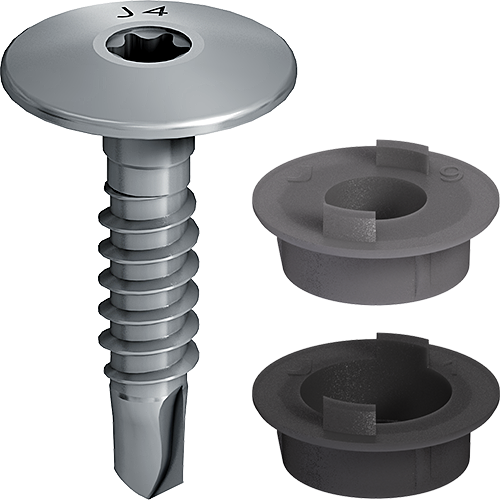

• Only to be used in combination with XT centring sleeves

Properties

• A2 stainless steel
• Pan head

Properties

• To cover slotted holes and large pre-drill diameters
• Also available as laquered version
• Flat screw head for aesthetic facade design
• Easy assembly and reliable sliding thanks to optimised free
• spin zone
• Regulated by the building authorities in test certificate P-S 18
• 0447
• Easy removal of protective film
• Centring grommet collar protects the surface of the facade
• panel from scratches
• No rivet installation gauge or drilling gauge necessary
• Thread-free part under the screw head allows an intentional
• further rotation of the screw head after connecting surface

Technical specifications

• Diameter: 5.5 mm
• Drill capacity: 2.0 – 3.0 mm
• Drive: hexalobular TX 25
• Screw head diameter: 16 mm
• Screw head height: 2.0 mm
• Free spin zone under screw head: 6.0 mm
• Pre-drill diameter sleeve: 11 mm
