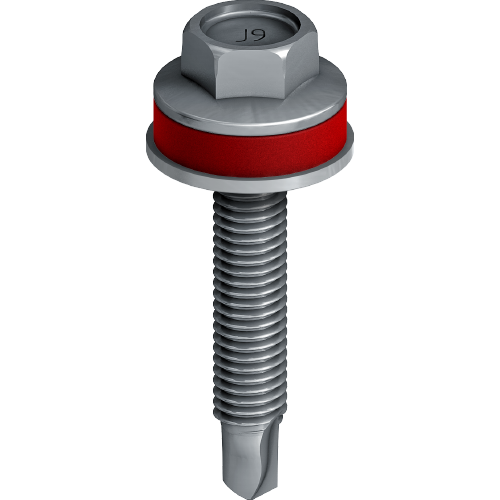

EJOT® self-drilling screw JT9-2/5-5.0 VARIO

Applications

• To form sliding and fixed points on substructures of rainscreen facades
• Fastening pre-drilled stainless steel or aluminium wall brackets
  to aluminium support profiles

Properties

• One screw for all part combinations
• Sliding washer E14, Ø 14 mm
• Buffer zone between the screw head and sliding disk prevents
  excessive clamp load of the joint.
  Pre-assembled captive sliding washer
• Consistently low contact pressure prevents stick-slip phenomenon
• No stripping / destruction of the thread in component II resulting
  in high tensile loading capacity
• High tensile and transverse load transmission in component II
  due to fine pitch thread
• National technical test certificate (abP) as proof of usability
  according to DIN 18516-1 (also available as informal English
  translation)
• Case hardened drill point of the JT6 version for fastening in
  steel support profiles (not part of the abP)
• Wall brackets made of stainless steel and aluminium are part
  of the abP
• Buffer zone serves as visual set control
• Same assembly concept for sliding and fixed points

Note
Component assemblies checked with Rm (component II) ≥ 190,
≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the
national technical test certificate (abP) P-BWU02-178006

Technical specifications

• Diameter: 5.0 mm
• Drilling capacity 3.0 mm
• A/F8 hexagon drive
• Assembly torque: 1500 rpm
• Sliding washer E14, Ø 14 mm

Notice
Component assemblies checked with R_m (component II) ≥ 190, ≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the general building authorities test certificate (abP) P-BWU02-178006.
